Sprout Bauer
12 MA Twin Flow | |
|
|  | | | | Description |

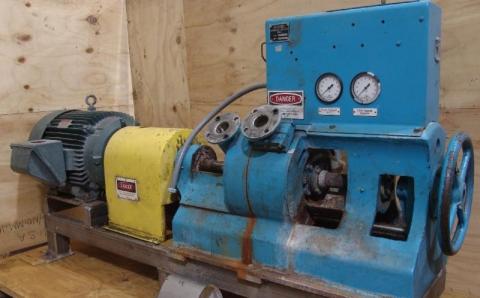

Usaed Andritz Sprout Bauer Model R12MA Refiner with Motor and Base Serial Number: 1997-01012, Built in 1997
12 inch Refiner for lab use or low volume
with base & motor
Motor info: 50 hp, 1185 rpm, 460 volt
Used 12" Sprout Waldron Model 12MA twin-flo refiner
with manual disc adjustment.
This refiner can take up to 175hp at 1800rpm, with no-load horsepower at 65hp.
As a guideline it can process between 15/80 BDT/Day, 70/380gpm.
Minimum inlet pressure is 20psi and max discharge is 100psi.
Seal water requirements are 1 1/2gpm per refiner, 20 psi over max stock inlet pressure.
|
|
|
|
