Pressure Screens




Voith
MSM 05/05
Item #12269
SizeMSM 05/05



Description

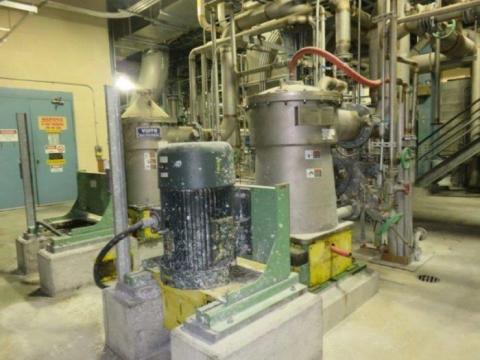

Used Voith MSM 05/05 pressure screen, new 2005. Serial #28981. Stainless steel body and bolt-on top cover. 100 HP Toshiba motor, 575 volt.
STOCK TO BE HANDLED: 55% HW, 35% SW, 10% Broke CONSISTENCY: 3.8% FREENESS: CSF
DESIGN CAPACITY: 162 BDSTPD 147 BDMTPD DESIGN FLOW: 846 USGPM 3203 LPM
SCREEN FED BY: SEAL TYPE: Chesterton 891 PRESSURE RATING: 87 PSI
SLOT WIDTH.: 0.008″ IN 0.2 MM 20º ANGLE
ROTOR SPEED 1085 RPM ROTOR P/N: 139083
WETTED PARTS: 316 WELDED 316L
DRIVE BY: Voith V-BELT/POWERBAND NO. 5VX1180 C.D.: 41..2″
MOTOR SHEAVE: 5 GR 5 V 8.5″ O.D. BORE: 2.88″ KW: 0.5″
DRIVEN SHEAVE: 5 GR 5 V 14.0″ O.D. BORE: 70 mm KW: 20 mm
